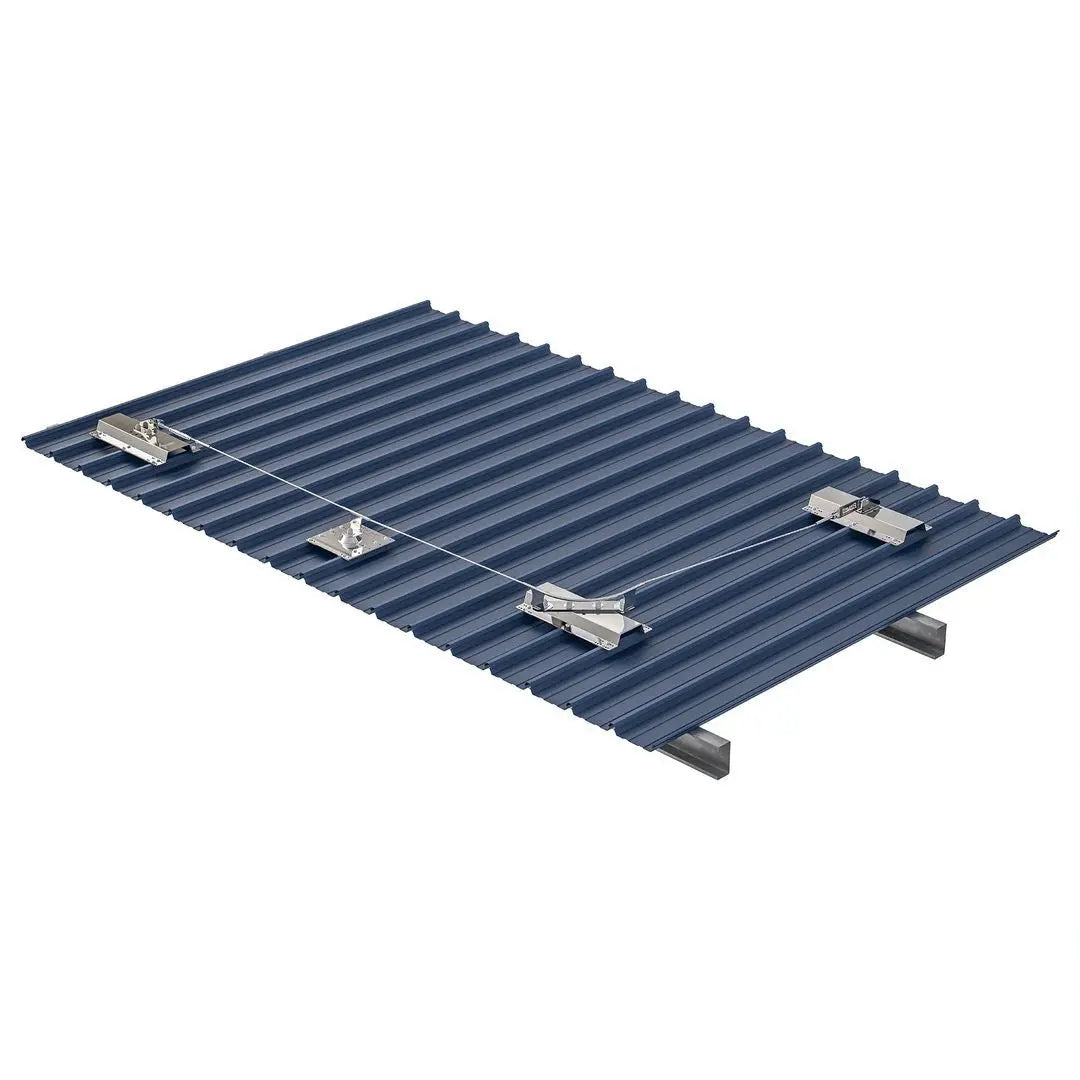

Travel8™ Metal Deck Mount Static Line System

Travel8™ Metal Deck Mount Static Line System

The SL1 metal deck static line is a proprietary fall arrest system suitable for multiple users, providing a high level of safety for workmen and maintenance personnel requiring safe access to plant and equipment. The system offers continuous attachment and incorporates low-profile, high-quality components that can be used in horizontal, vertical, and overhead applications using the required system traveller.

• Fall arrest use

• 22kN rated

• Multi-user capability

• Advanced energy-absorbing technology

• Smooth intermediate pass-through system

• Simple installation using modular components

• Low-profile system with powder coating option

Materials

Stainless steel profiled plate assembly including end stanchions, intermediates, corners, cable and connection devices.

Dimensions

- Attachment cable: 8mm (7 x 7 strand)
- Cable height off structure: 125mm to 150mm

Fixings

• Metal fixing: M14 stainless steel stud fixing

• Concrete fixing: M12 mechanical concrete anchor

• Metal roof deck fixing: 8mm construction grade bulb type rivets

Substructure requirements

• Maximum roof pitch: 30 degrees across slope, 15 degrees with slope

• Support structure integrity, suitability and fixing method to be assessed and determined by a competent person prior to installation.

Rating

• Rated 22kN for fall arrest use

• User weight limit: 120kg (user and equipment)

• Up to 4 users per line, determined by intermediate spacing and roof pitch

Compliance

Kattsafe static lines are designed to conform to requirements of Australian & New Zealand Standards AS/NZS 5532:2013, AS/NZS ISO 22846, AS/NZS 1891.4.2009 and relevant statutory codes of practice and guidelines.

Testing

Testing and performance based on requirements of Australian & New Zealand Standard AS/NZS 1891 and AS/NZS 5532.

Product Warranty

10 years from the date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer's specifications and recommendations. (This excludes wearing parts).

Inspection & maintenance

Inspection and certification required every 12 months by competent person in accordance with manufacturer’s specifications and requirements of Australian Standards AS/NZS 1891 and AS/NZS 5532 (refer installation manual).

Important notes

• Static line system must only be used with the approved traveller device and harness system with energy absorber as per AS/NZS 1891.1.2009 and AS/NZS 1891.4.2009.

• Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications and instructions voids complete system certificate and/or warranty.
