BTRENCHSAFE® Rescue / Retrieval Shoring Davit Kit with Canvas Bag

The BTRENCHSAFE® Rescue/Retrieval Davit Kit is designed to mount securely onto steel or aluminium trench shoring panels, providing a safe and effective means of extracting workers from trenches and ground excavations.

Davit Kit Features

• Construction: Lightweight, ultra-strong aluminium grade T6061, powder-coated in high-visibility orange.

• Safety: Built-in visual overload fall indicator.

• Adjustability: Multiple offset reach settings for greater coverage in large excavations.

• Mobility: Modular design, with no single component weighing more than 12 kg for easy handling on site.

• Fall Protection: Inertia Reel (with Recovery Winch mode) featuring a 24 m effective working length.

• Durability: Minimal moving parts reduce the risk of damage or failure in tough site conditions.

Shoring Panel Bracket Features

• Protection: Increased surface area at critical holding points prevents puncturing or piercing of aluminium shoring panels.

• Build Quality: Steel construction, powder-coated in high-visibility orange.

• Compatibility: Adjustable throat opening accommodates shoring panels from 20 mm to 200 mm wide.

Kit Contents

• 30106 – Davit mast, 3-piece (0.5–0.7 m reach, 1.2–1.4 m height)

• 60202UI – IKAR interface winch bracket (suits HRA-24TA recovery block)

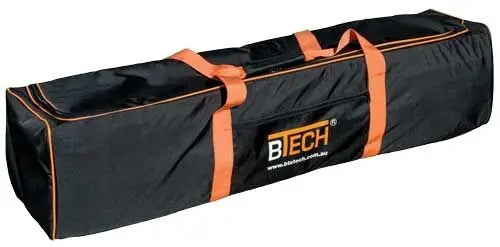

• 40003B – Canvas bag

• 30166R – Shoring davit base with jaw opening 20–205 mm

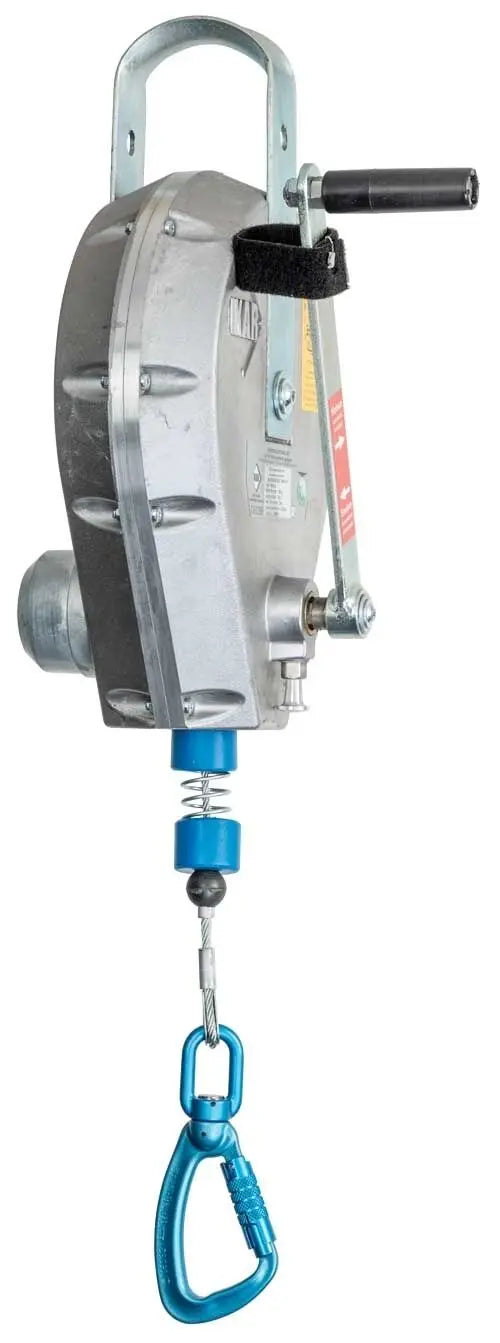

• HRA-24TA – Inertia reel with rescue recovery feature (aluminium housing, 24 metres of galvanised wire rope, triple-action karabiner)

Certifications

• Complies with AS/NZS 5532 and AS/NZS 1891.4, plus relevant Australian Codes of Practice.

• Certified by an RPEQ for use within Queensland.

Special Note: The shoring bracket does not fit inside the supplied canvas bag.
